Click to see full specs
RANGE |
|
|---|---|
Single Battery |
Maximum Range - 40 miles WMTC* Range - 29 miles |
Dual Battery |
Maximum Range - 80 miles WMTC* Range - 63 miles |
*WMTC range figures are calculated as part of an official mixed variety of testing scenarios, including representative city use (for which the RM1 has been designed), and extended periods at higher speeds, as certified by the homologation authority. |
|
MOTOR |
|
Type |
Bosch Hub Motor |
Continuous Rated Power |
3.0 kW (4 hp) |
Maximum power |
4.4kW (5.9 hp) |
Max. torque |
160 Nm |
Maximum speed |
45mph |
ELECTRICAL SYSTEM |
|
Traction battery |
Dual Battery Pack Design (2nd battery optional) |
Battery voltage (nominal) |
50.4 V |
Charging capacity |
42 Ah |
Energy |
2026 Wh |
Charger |
600W |
Charging time |
Approx. 4h:10min for 0-100% and approx. 2h:55min for 0-80% |
Charger input |
240 VAC (UK version) |
Auxiliary Battery |
12 V / 7 Ah |
Alternator |
DC/DC converter intergrated into battery control unit |
CHASSIS & BRAKES |
|
Frame |
CrMo Steel cradle frame |
Front suspension / suspension elements |
Dia 37 non-adjustable forks, 110mm travel |
Rear-wheel guide/suspension elements |
Twin RSU with pre-load adjustment, 80 mm travel |
Wheelbase |
1395 mm |
Trail |
103 mm |
Rake Angle |
26° |
Wheels |
Spoked wheels with Aluminium rims |
Rim, front |
2.15 x 19" |
Rim, rear |
2.15 x 19" |
Tyre, front |
Dunlop K70 3.25 x 19 54P |
Tyre, rear |
Dunlop K70 3.25 x 19 54P |
Brake, front |
Single disc brake 240mm (3 piston floating caliper) |
Brake, rear |
Single disc brake 180mm (single piston floating caliper) |
Linked Brakes |
Bias 40% front, 60% rear |
DIMENSIONS & WEIGHTS |
|
Seat height at vehicle kerb weight |
785 mm |
Length (includes number plate fitted) |
2145 mm |
Height (excludes mirrors) |
1067 mm |
Width (over mirrors) |
896 mm |
Unladen weight, road ready (single battery) |
111 kg |
Permitted total weight |
230 kg |
Payload |
119 kg |
SERVICE DETAILS |
|
Tyre Pressure Front |
2.2 Bar (32 psi) |
Tyre Pressure Rear |
2.2 Bar (32 psi) |
Torques |
Front Wheel Axle Nuts - 65 Nm |
DESIGNED FOR THE CITY
Removable Battery Technology
Up to 80 miles range
45 mph top speed
EASY TO HANDLE
Fully automatic, JUST TWIST AND GO
DELIVERY FROM JANUARY 2024
DUAL BATTERY
TECHNOLOGY
DUAL BATTERY
TECHNOLOGY
TECHNOLOGY
DESIGNED FOR OPTIMUM PERFORMANCE

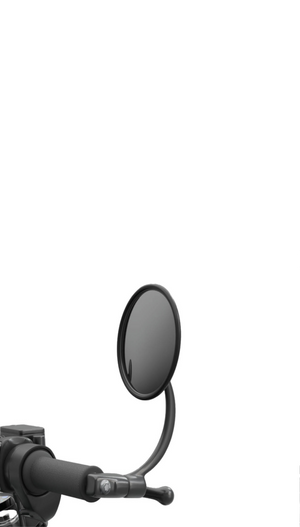

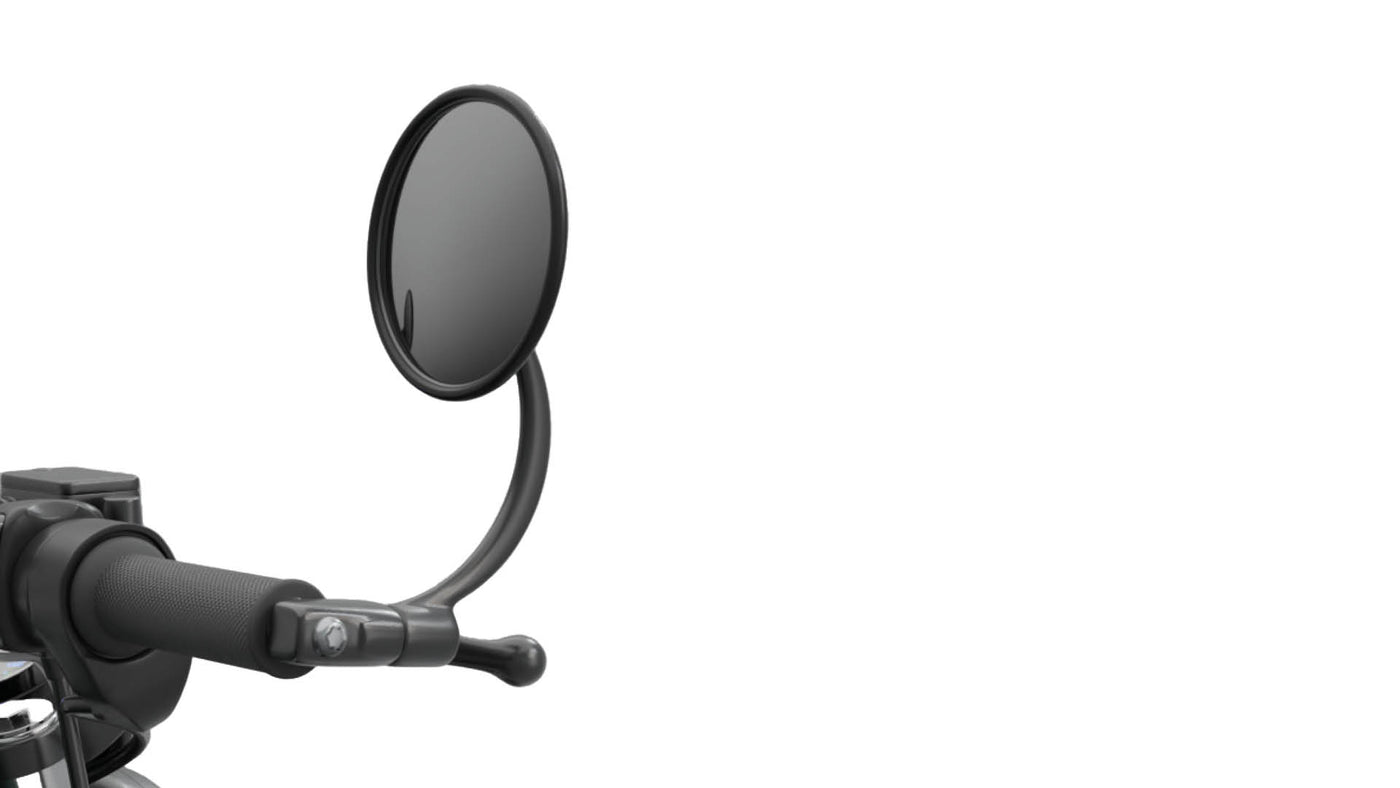

Powder-coated
bar end mirrors
Powder-coated
bar end mirrors
bar end mirrors

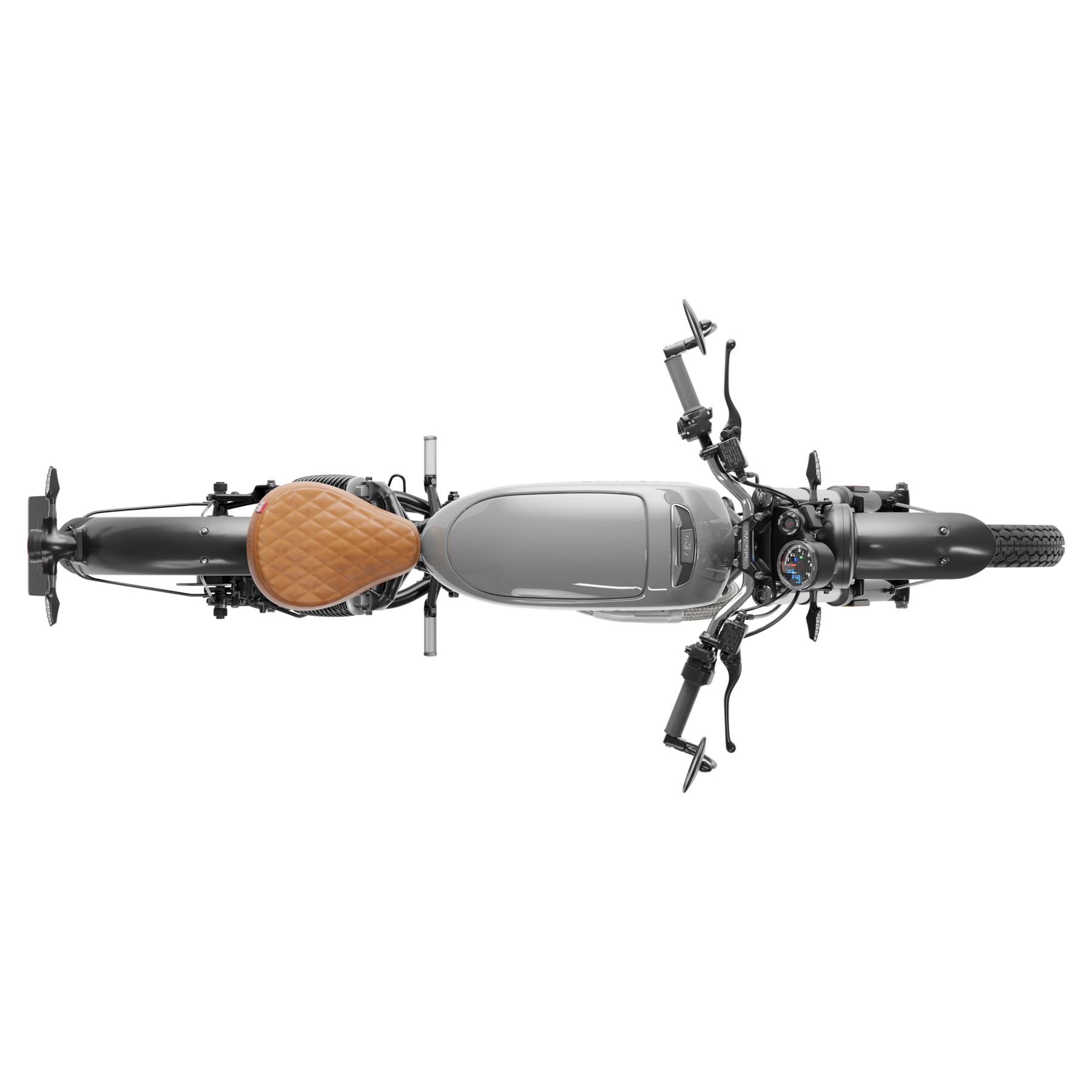

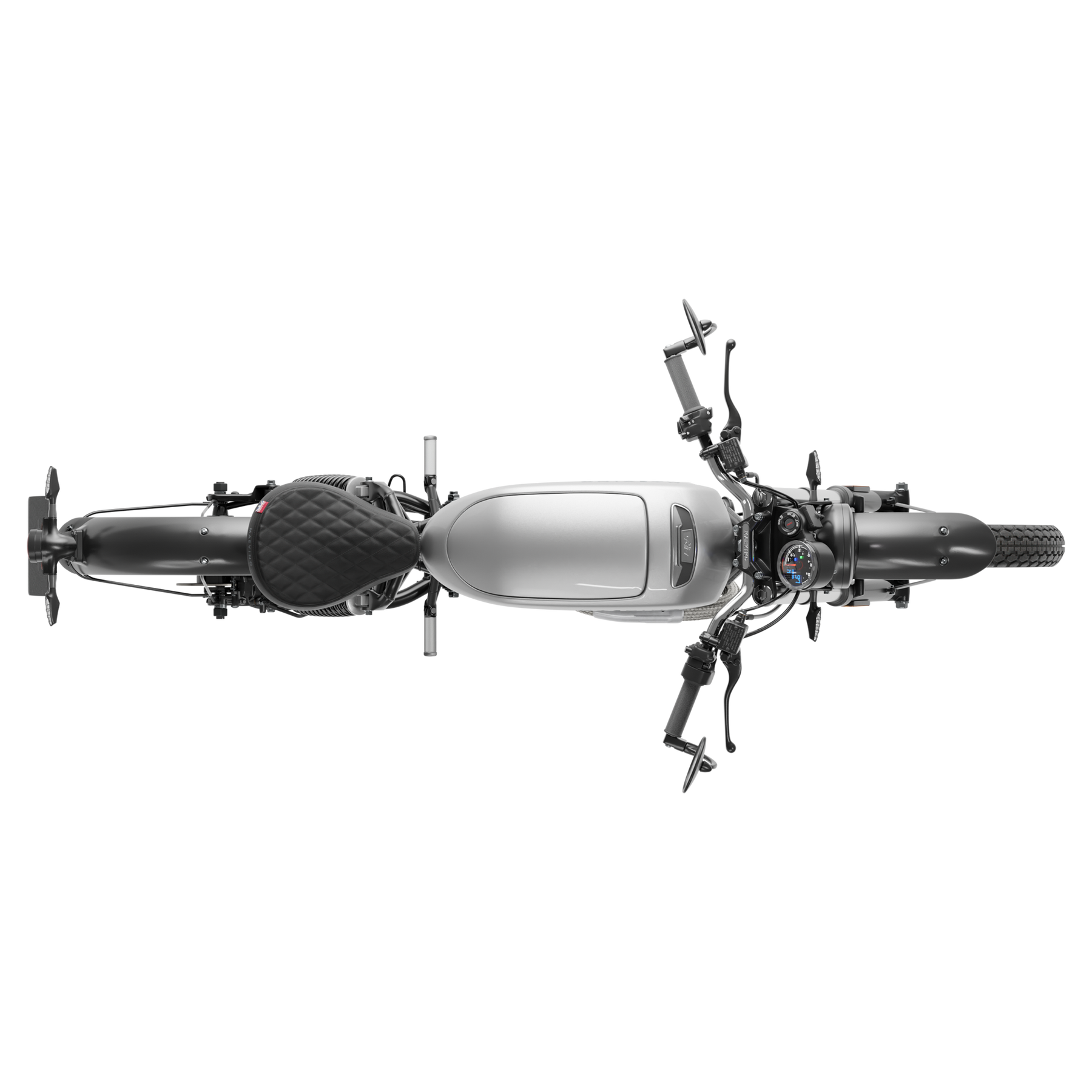

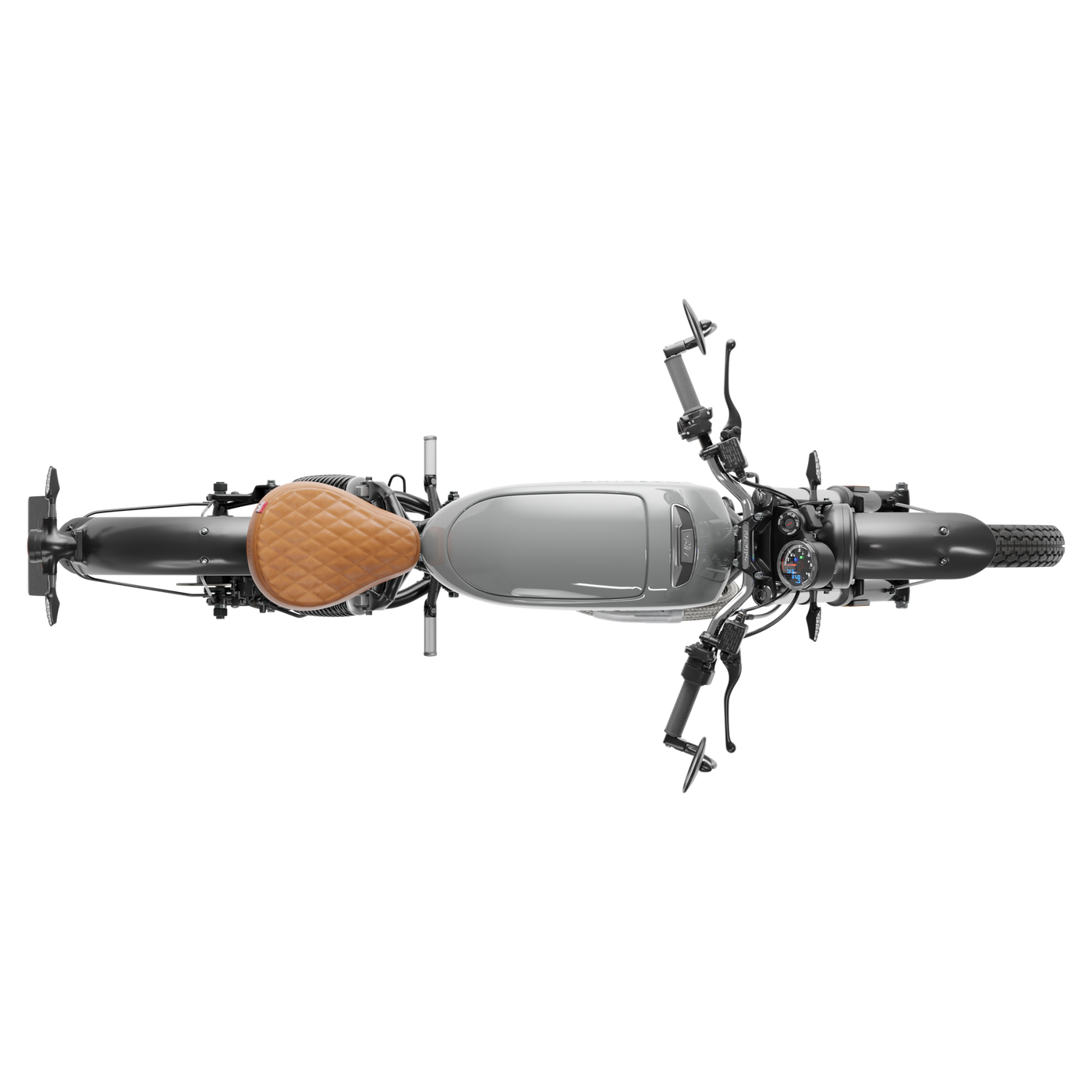

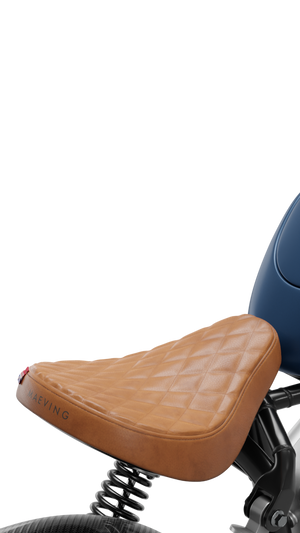

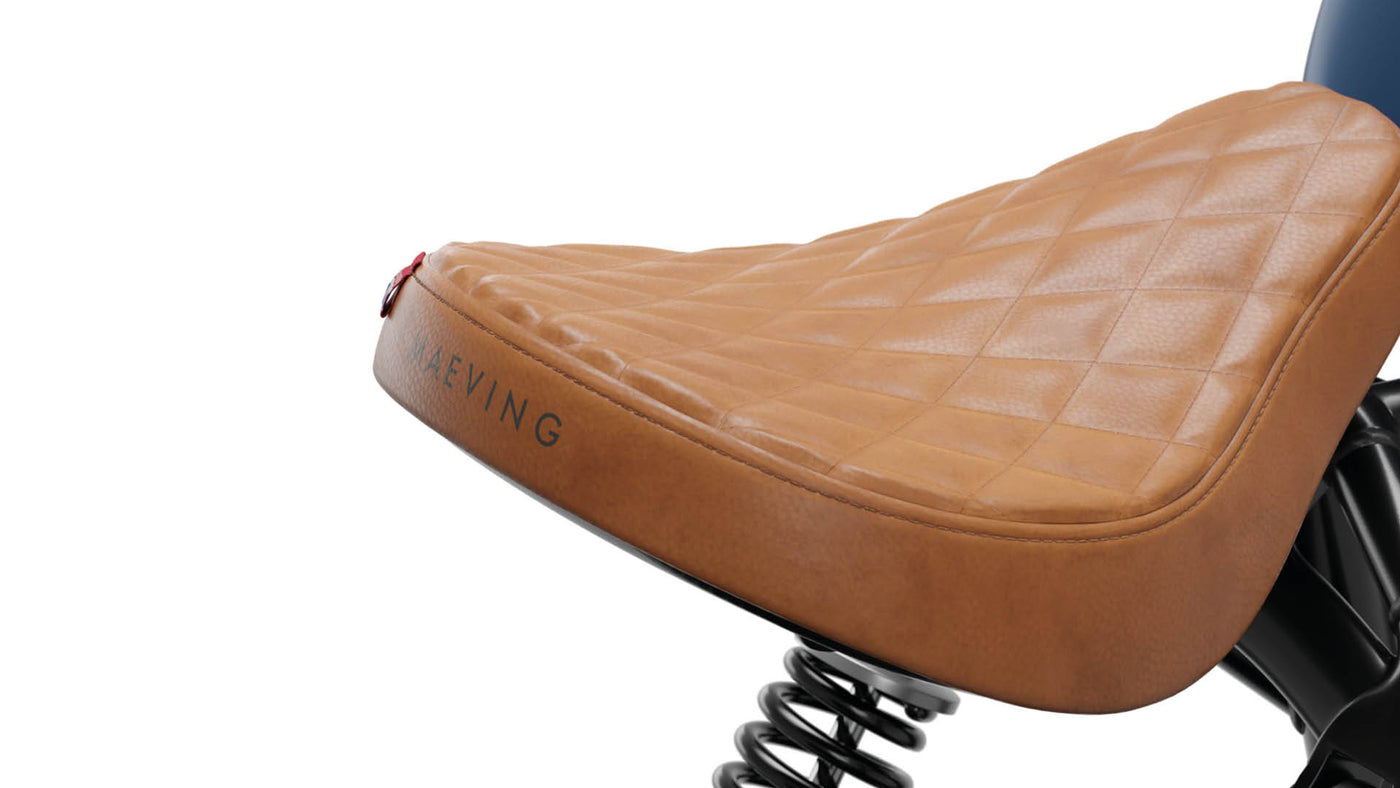

DIAMOND STITCHED
VEGAN LEATHER SEAT
DIAMOND STITCHED
VEGAN LEATHER SEAT
VEGAN LEATHER SEAT
All the comfort without
the cruelty.
the cruelty.

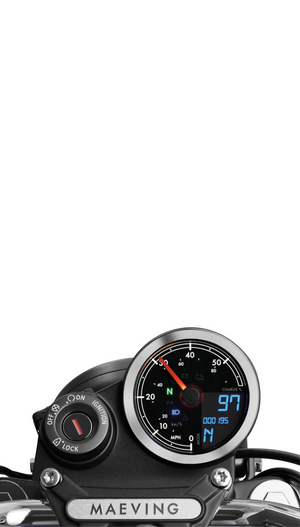

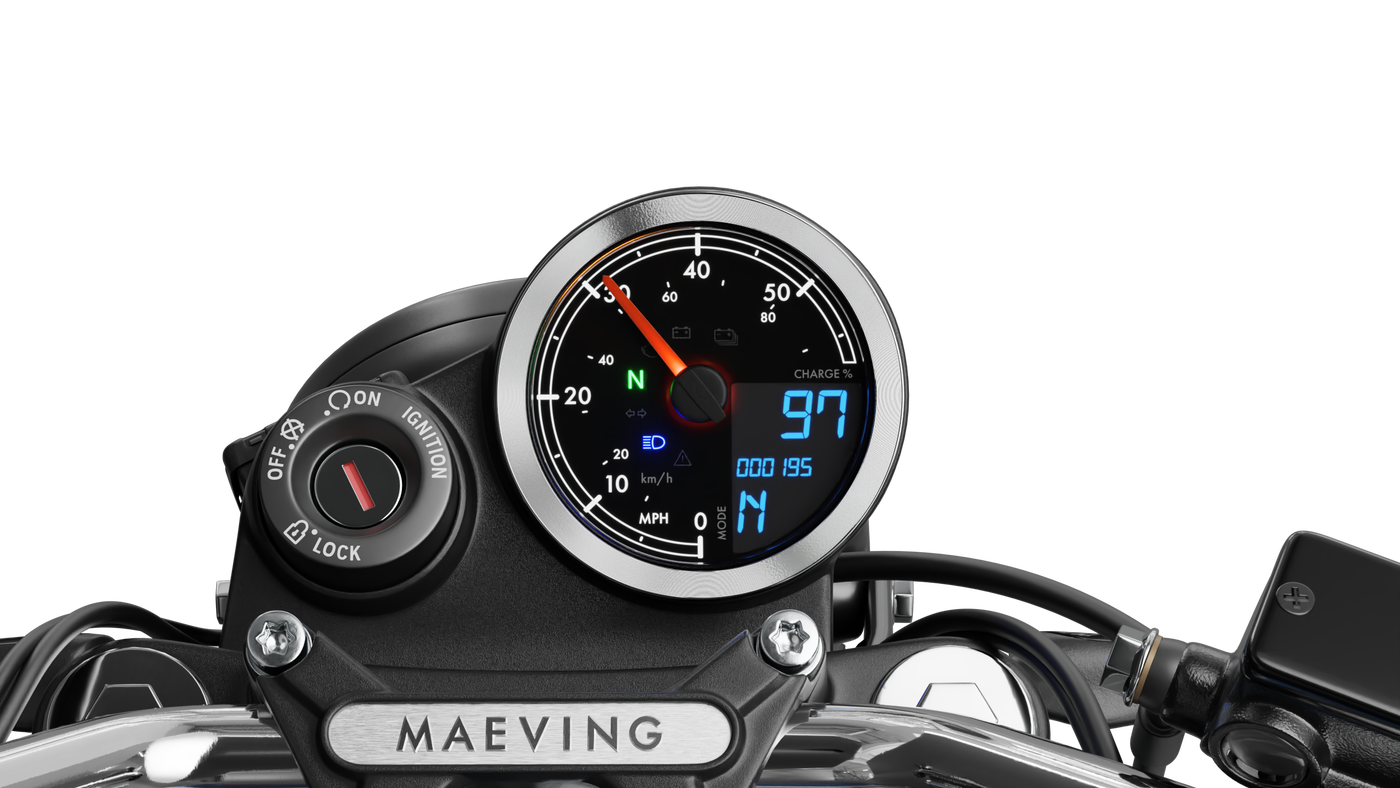

ANALOGUE
SPEEDOMETER
ANALOGUE
SPEEDOMETER
SPEEDOMETER
Everything you need.
Nothing you don’t.
Nothing you don’t.
Plug in
Anywhere
Plug in
Anywhere
Anywhere
3.5 HR CHARGE TIME

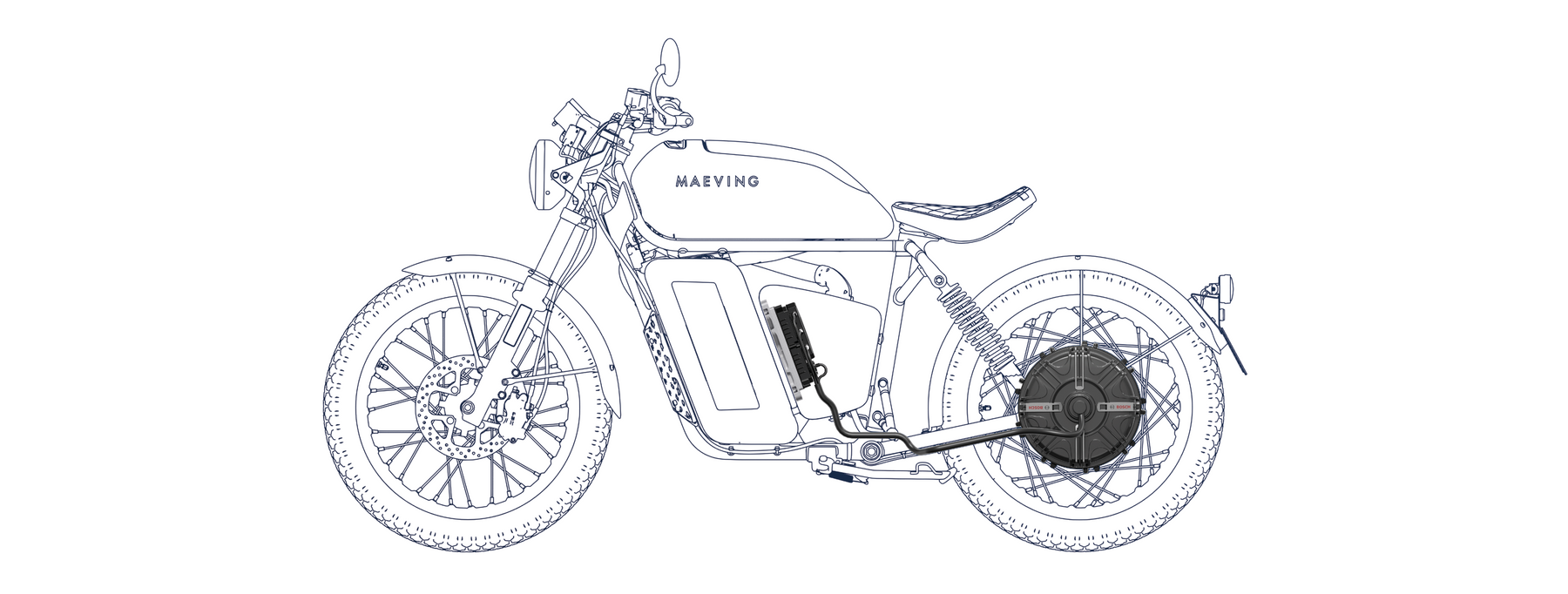

BOSCH POWERTRAIN
The RM1 is propelled by a single moving part: a next-generation Bosch hub motor. A major advantage of this mechanism is that it requires minimal maintenance. No oil, no chains, no petrol, no mess – just an electric motor produced by one of the most highly regarded manufacturers in the world.
